Item

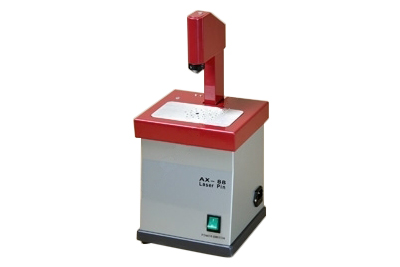

AX-88 Laser Pinhole Drilling Unit

Certification
CE Approved　ISO9001:2000 Approved

Purpose
The unit is used in model-making, it provides a simple way to fabricate precise parallel drill channels.

Description
This AX-88 Laser Pinhole Drilling Unit features high RPM, low noise, and easy operations. The laser beam positioning system ensures high precision operations. The drilling depth can be adjusted within 0.15mm. The travel switch allows the motor to be turned on when the worktable is being pressed, which helps to increase its lifespan.

Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 150W
Rotational Speed: 2,800RPM
Drilling Depth: 0~12mm (Adjustable)
Dimensions: 39cm x 18cm x 18cm (H W D)
Shipping Dimensions: 47cm x 18cm x 25cm (H W D)
Weight: 17kg

Parts Included
Machine×1
Manual×1
Power Cord×1
Fuse×2
Drill×1
