- D1S
Dental 3D Printer

D1S



D1S Dental 3D Printer

AccuFab-D1s
Dental 3D Printer
. Fast Print Speed
. Ultra High Accuracy and Details
. Intelligent Print
. Long Lifetime and Low Cost
 D1S Dental 3D Printer
  D1S Dental 3D Printer

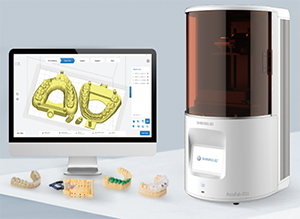

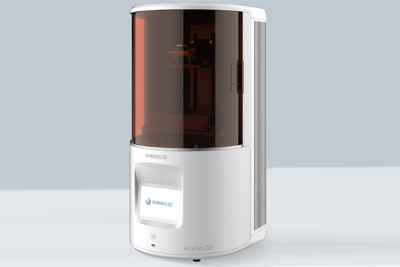

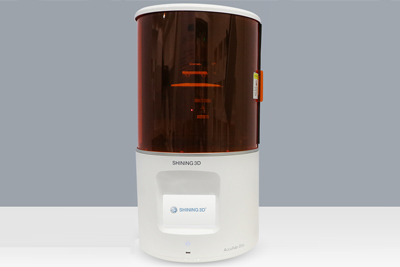

  AccuFab-D1s - Your Upgraded Printer
Based on years of experience in dental industry, the upgraded AccuFab-D1s offers users a more intuitive and user-friendly workflow with even faster print speed and better accuracy. With diverse resin material options, it can meet diverse demands in restorative, implant and orthodontic applications. This is the ideal printer solution for all dental customers wishing to enter into the era of digital production.

 /D1S Dental 3D Printer

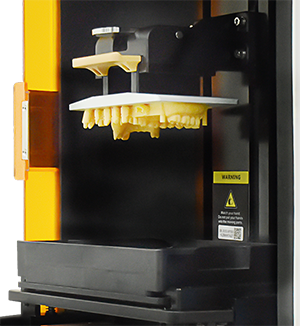

 FAST PRINT SPEED
Featuring a large build volume of 144 x 81 x 160 mm and a fast print speed of up to 50mm/h, the AccuFab-D1s is able to print max 4 arch models in an hour, multiple surgical guides in less than 30mins.

Build volume:144 x 81 x 160mm

Print speed:up to 50mm/h

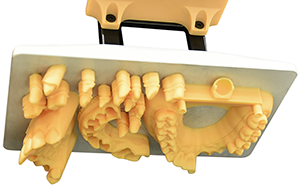

 ULTRA HIGH ACCURACY AND DETAILS
Patented pixel distortion correction algorithm and full HD 1080p projector garantee ultra-fine print accuracy and details.

Print accuracy

±35μm

 D1S Dental 3D Printer
 D1S Dental 3D Printer

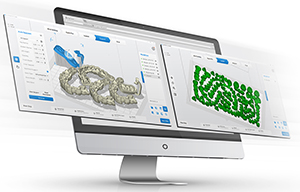

 INTELLIGENT PRINT
Integrated with advanced print software, the AccuFab-D1s supports intelligent support creation and "one-click" printing, providing user-friendly print experience with higher repeatable consistent accuracy.

D1S Dental 3D Printer

 LONG LIFETIME AND LOW COST
With long lifetime resin tank, the AccuFab-D1s reduces operation cost. The resin tank can be used for 100,000 layers of printing.
Layers of printing

100,000

Resin tank

 D1S Dental 3D Printer

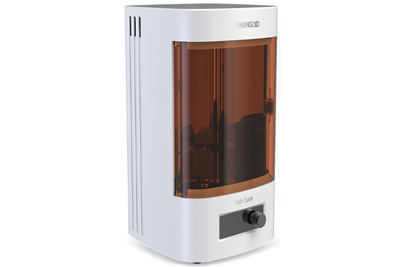

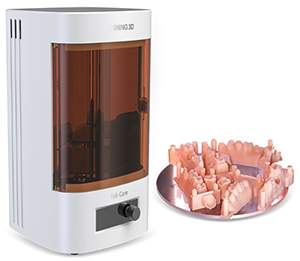

D1S Dental 3D Printer  EASY POST-CURING
Featuring easy operation and uniform exposure, the Fab Cure maximizes the mechanical & flexural properties of the parts for further operation of dental workflows.

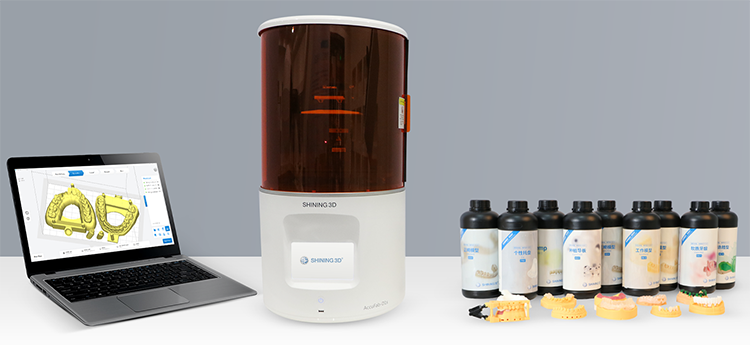

 VERSATILE APPLICATION

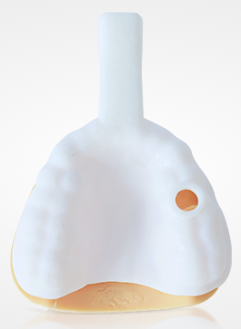

AccuFab-D1s can be applied in a wide range of applications, such as dental working model, wax-up, surgical guide, gingiva, customized impression tray, bracket transfer tray, etc
 D1S Dental 3D Printer

TECHNICAL SPECIFICATIONS
Dimension:396 mm * 406 mm * 755 mm
Weight:30 kg
Build Envelope:144 mm * 81 mm * 160 mm
Print Speed:50 mm / h*
Print Accuracy:±35 μm
Layer Thickness:25 μm, 50 μm, 100 μm
DLP Native Resolution:1920 x 1080, 1080 p
Material Option:Open
Interface:USB / Ethernet / Wi-Fi


FAB CURE
Dimension:200 mm * 200 mm * 325 mm
Weight:6 kg
Turntable Diameter:165 mm
Maximum Part Height:160 mm
Operating Temperature:10 ~ 30 ℃
Power:DC24 V, 2.5 A, 60 W
Light Source:UV LED
Wavelength:405 nm
LED Power:30 mw / cm2
