Dental 3D Scanner

DSEX PRO H

Ultra-high Accuracy
Unparalleled Details
Outstanding Scan Speed
Flexible Workflow
Backstage Data Processing
Versatile Scan Modes

E-mail: smiledt@163.com

DSEX PRO H Dental 3D Scanner

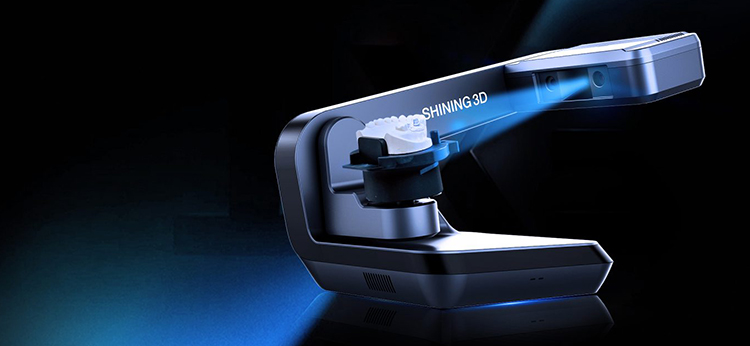

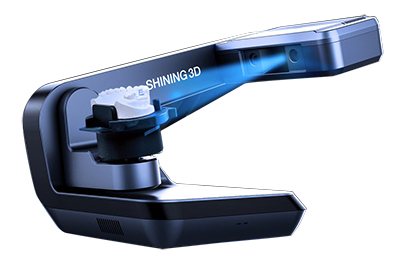

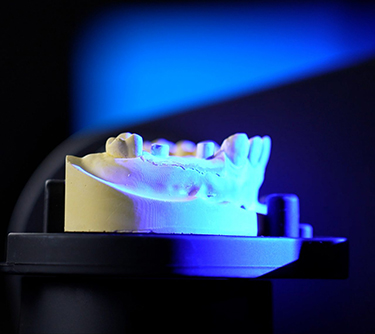

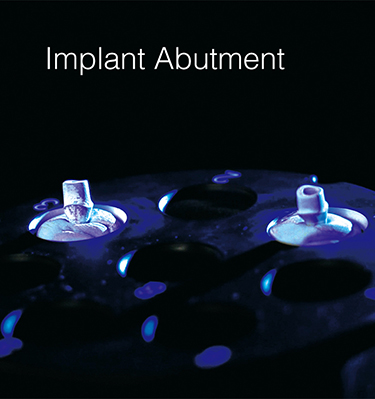

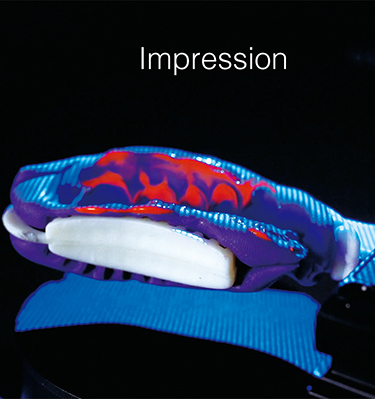

DSEX PRO H Dental 3D Scanner , developed and manufactured by SHINING 3D, is a 3D dental scanner with powerful functions for multiple applications covering scans of impressions, plaster models, articulators, implant abutments, etc. Its high-resolution cameras, advanced algorithms, and user-friendly interface bring you with superior data quality with optimal experience.

Ultra-high Accuracy Scan accuracy ≤ 8 μm assures reliable scan result, satisfying the requirement of various applications in dental industry completely.

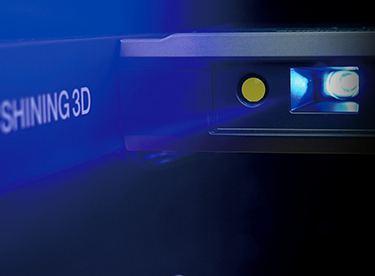

	Unparalleled Details Equipped with dual 5.0 MP high resolution cameras, AutoScan-DS-EX Pro(H) can capture every detail of the components meticulously.

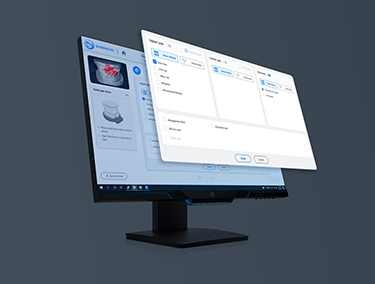

	Flexible Workflow Set up your own workflow as you prefer, increasing work efficiency like never before, all-in-one and triple tray are available to get complete scan data with less steps.
Backstage Data Processing Scan and backstage data processing can be carried out simultaneously, making the whole process more efficient.

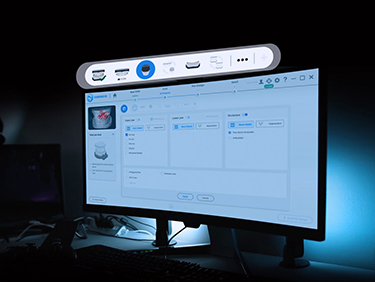

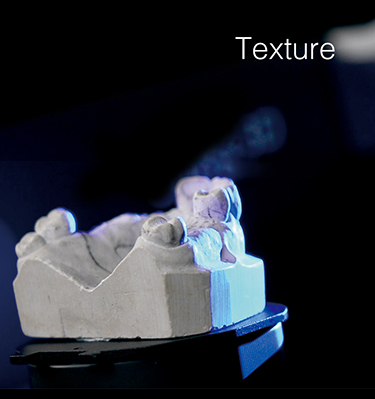

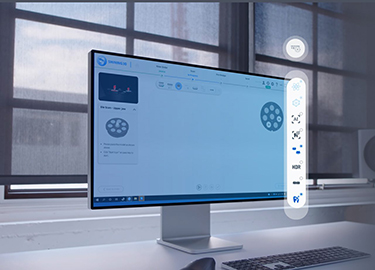

	Versatile Scan Modes The new software associated with AutoScan-DS-EX Pro(H) can support versatile scan modes, including Multi Path Scan, High Quality Scan, AI Scan, Texture Scan, HDR Mode Scan, Reduce High Brightness Scan, etc.

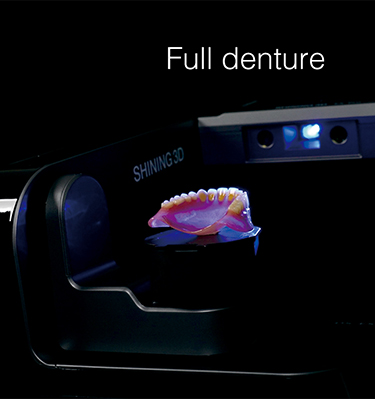

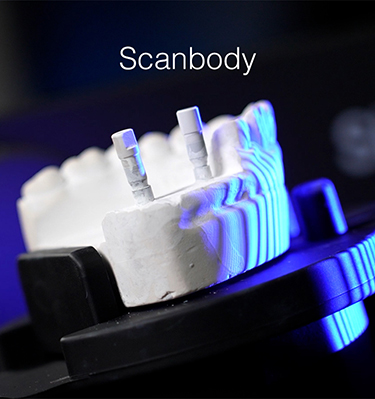

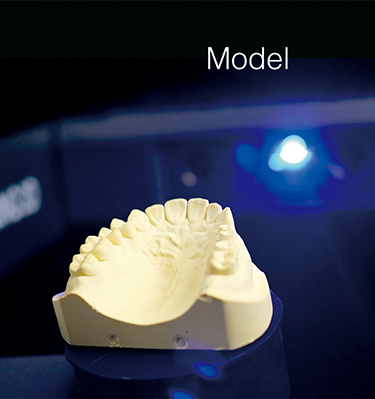

VERSATILE APPLICATION

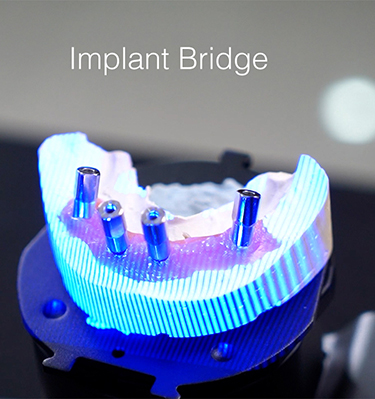

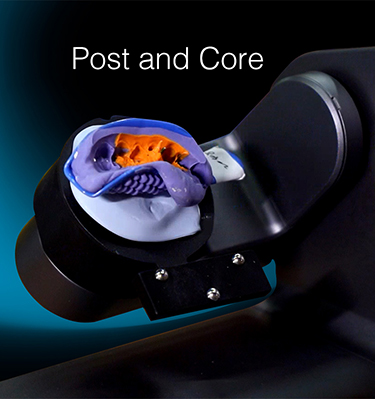

AutoScan-DS-EX Pro(H) supports multiple dental scan applications.

TECHNICAL SPECIFICATIONS

Camera Resolution         2*5.0 MP
Accuracy                     8 μm

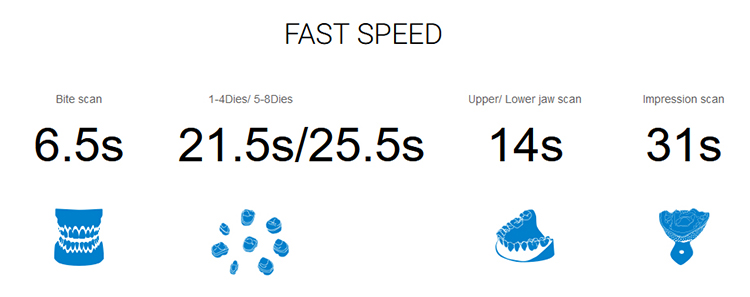

Scan Time                     Bite scan: 6.5s; Upper/Lower jaw scan: 14s;1~4 dies scan: 21.5s; 5~8 dies scan: 25.5s; Impression scan: 31s;

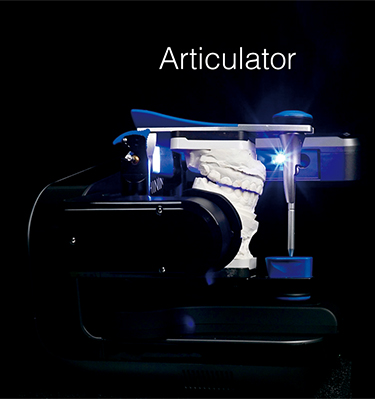

Articulator Scan              Support articulator transfer
Output Format                STL, PLY, OBJ
Light Source       Blue Light
Dimension                      420*260*270 mm
Weight                           5.0 Kg
Interface                         USB 3.0
Power Supply                  DC 24V

* Based on Shining 3D internal test standard.
