Item

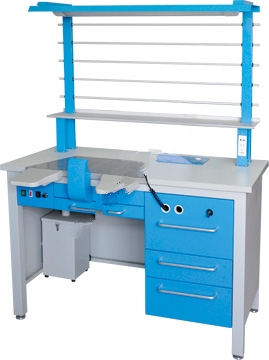

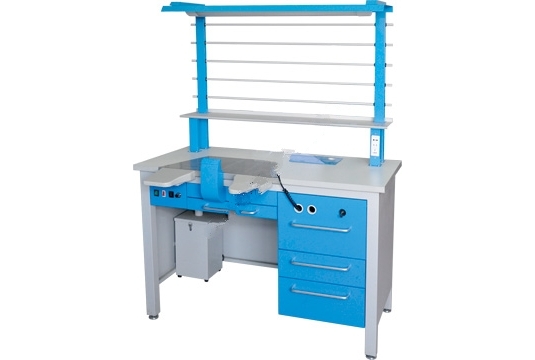

New AX-JT4 Dental Workstation (Single)

Certification
CE Approved　ISO9001:2000 Approved

Purpose
This unit is used in dental laboratories for removal of dust resulting from machining.

Description
The New AX-JT4 Dental Workstation was developed by Aixin with ergonomic designs for most dental technicians on the basis an OEM product for the Japanese market. The main body is made of cold pressed steel, and the tabletop is made of durable high density fireproof board. This unit features double 60 watt light tubes, stainless steel plate, arm rests with safety locks, automatic retrievable air nozzle, suction system, storage drawers, shelf for hanging pans and normal pans, two types of suction inlets, and gas pipe for Bunsen burner etc.. It also has an embedded storage box hidden under the tabletop which has a power outlet inside. What’s more, this unit has an automatic foot control for both the handpiece and the dust collector, users can simply control the dust collector and handpiece with one pedal. And the rotational direction of the handpiece and the dust collector can also be controlled separately on the control panel. This design can increase the lifespan of the motor by 200% and reduce the power consumption by 300%. （The product life and power saving improvement tests are individual tests, they may be invalid under certain operating environments. ）

Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 500W
Air Volume: 172m³/h
Max. Pressure: -16kPa
Noise Level: <68dB
Dimensions: 85cm x 120cm x 60cm (H W D)
Shipping Dimensions: 102cm x 127cm x 71cm (H W D)
Weight: 120kg
Parts Included
Fluorescent Lighting System×1
Air Nozzle×1
Arm Rest×2
Backup Power Socket×2
Dust Extraction System×1
Tools Drawer ×2
Storage Drawer×2
Pan×6
Suction Hood ×2
Handpiece Control Assembly ×1
Micromotor Handpiece×1
Gas Foreseen Hole ×1
Acrylic Resin / Stainless steel Tabletop×1 (Optional)
Hettich Drawer Slide (Germany)×8 (Optional)
Technician Stool×1 (Optional, please refer to C450)

Colors
If the order quantity is more than 12PCS, the color of the workstation can be customized. The colors in the pictures are for reference only, and are not used for final color matching.

Gloss Paint: Color Card 01, Color Card 02, Color Card 03, Color Card 04, Color Card 05
Flat Paint: Color Card 01, Color Card 02, Color Card 03
Sand Textured Paint: Color Card 01, Color Card 02, Color Card 03
