Tube voltage:60KV

Tube current:2.0Ma

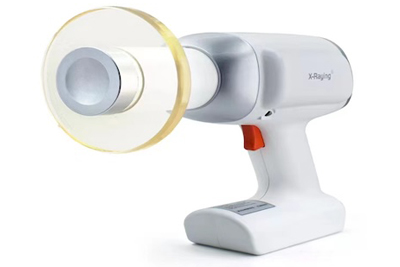

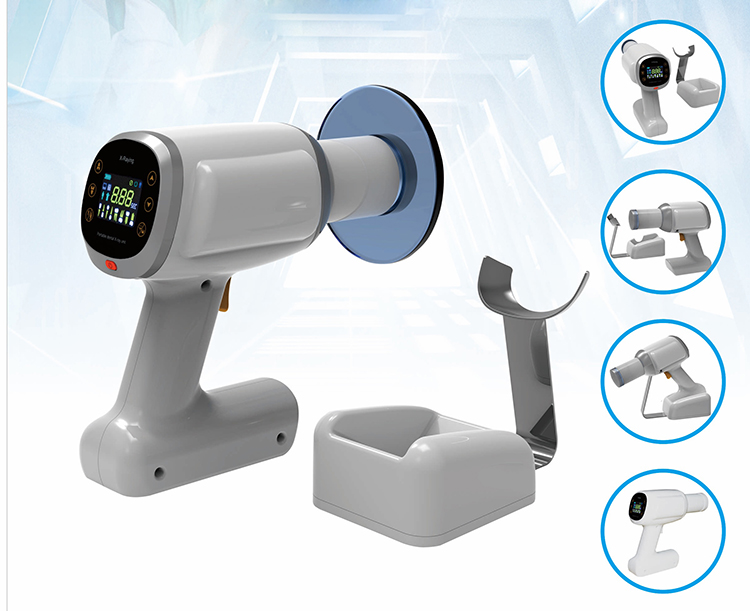

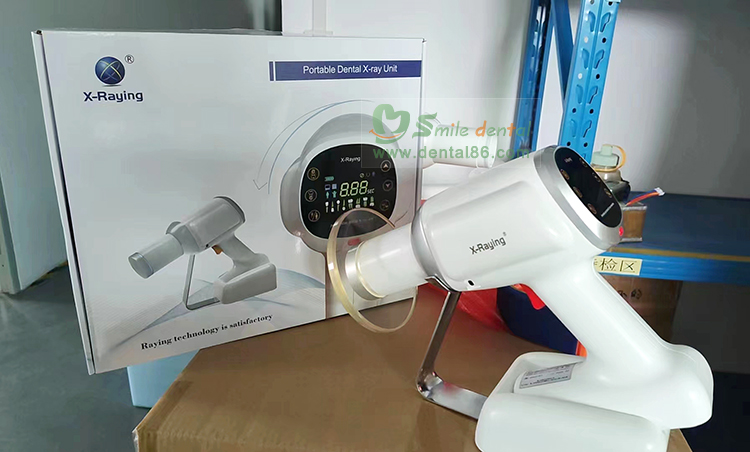

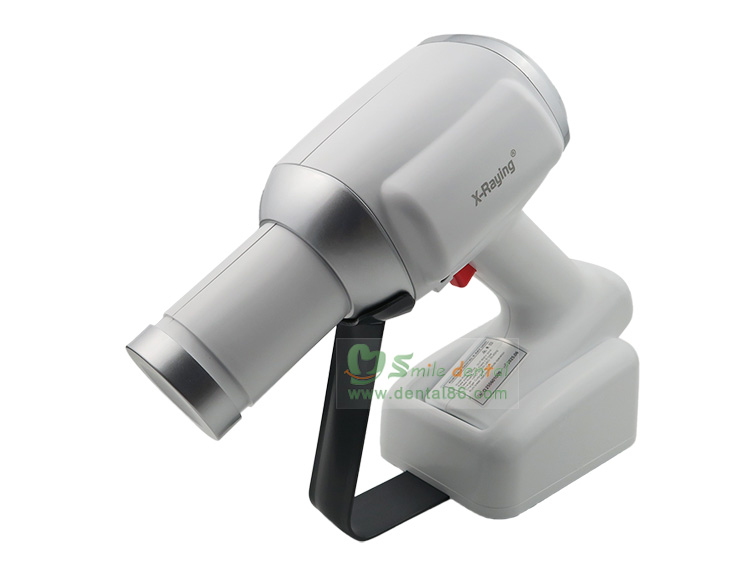

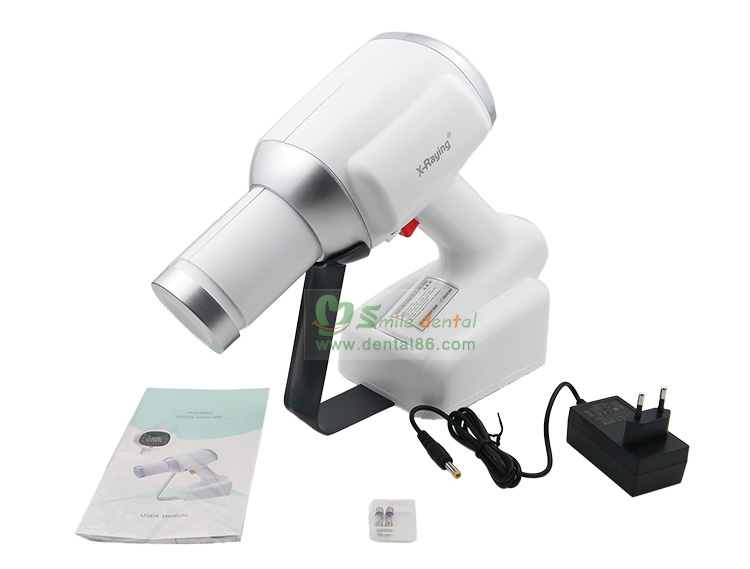

HIGH FREQUENGY DC PORTABLE DENTAL X-RAY UNIT

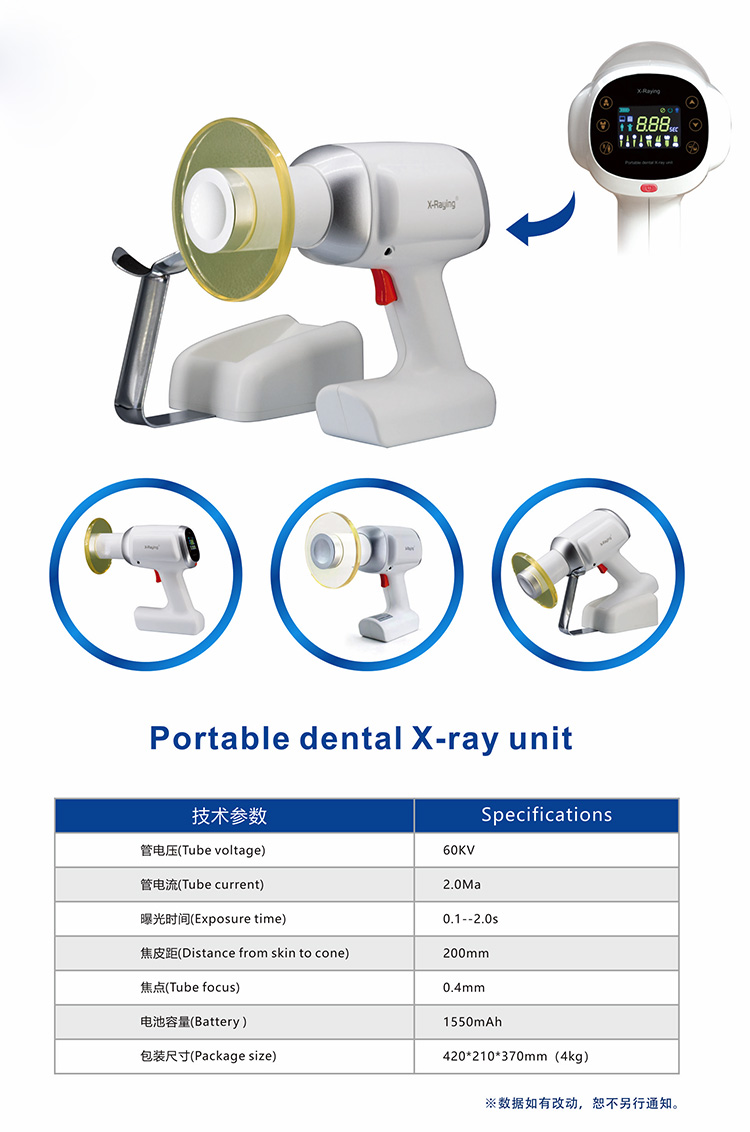

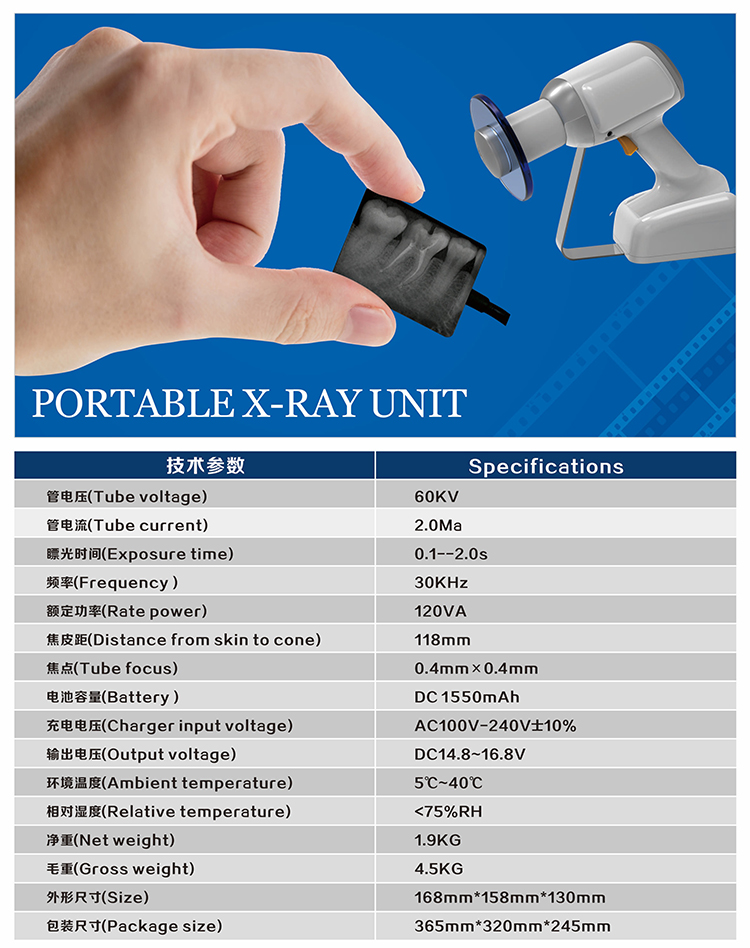

Specifications

Tube voltage:60KV

Tube current:2.0Ma

Exposure time:0.1--2.0s

Frequency:30KHz

Rate power:120VA

Distance from skin to cone:118mm

Tube focus:0.4mm×0.4mm

Battery:DC1550mAh

Charger input voltage:AC100V-240V士10%

Output voltage:DC14.8~16.8V

Ambient temperature:5℃~40℃

Relative temperature:<75%RH

Net weight:1.9KG

Gross weight:4.5KG

Size:168mm*158mm*130mm

Package size:365mm*320mm*245mm

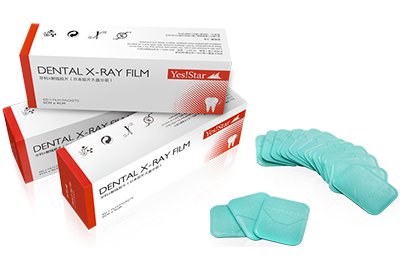

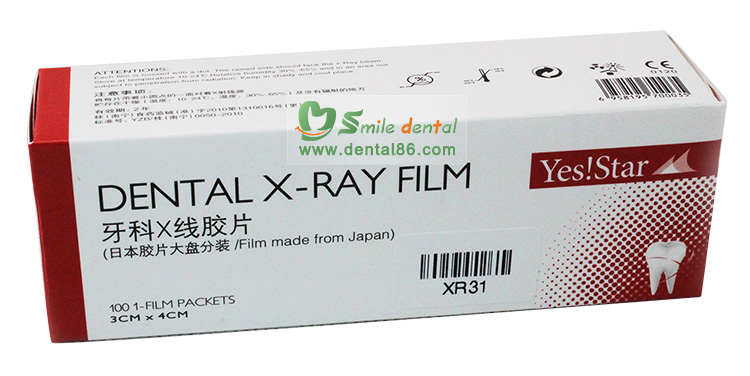

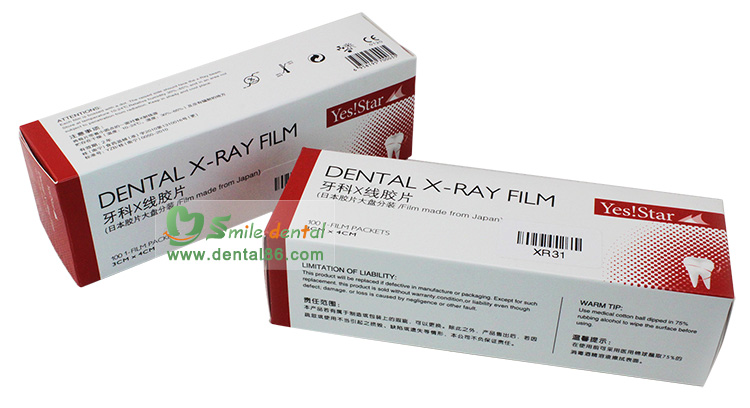

Product Introduction:
Dental X-Ray film used for dental X-Ray diagnosis, after regular develop procedure, it shows tooth hard tissues such as enamel, dentin, cementum, and periodontal tissues structure such as dental pulp soft tissue and parodontium. It provides necessary imaging basis for clinic diagnosis. Yes!Star dental X-ray film precisely cutting from Japan film roll.

Features:
Immediately developing, quickly acquire images.
No need for processing machine, saving space for clinic.
The combination of Yes!Star monobath with GY-D film increasing imaging capability.
Fast imaging improves efficiency.
Thinner film, more comfortable to customer

Traditional Dental Films(Develop and fix in the Dark room)

Characteristic:
Imaging clearness,the contrast ratio is high,the effect of gradation is distinct.It is applied to all kinds of traditional dental machine and the E-speed dental film is also applied to Low mA dental machine.The package is soft,the corner is mellow,can reduce the discomfort of the patient.It contains lead piece and can avoid the human intake the X-

ray.Moreover,our products are high qualities and inexpensive.

Storage:Proper temperature is 10-25℃,humidity is 40-60,avoid the glare of the long-term exposure.The quality guarantee is 2 years.

According to the speed of exposure,there are 3 kinds of dental films:Standard dental

films(Low speed),D-speed dental films and E-speed dental films.The main difference is the

time of taking pictures.They have the same conditional of development,it is 2-3min for

developing and 3-5min for fixing,The proper temperature is 20-3025℃.They are all applied

for auto machine development.

Exposure time:50-70Kv 7-15mA
