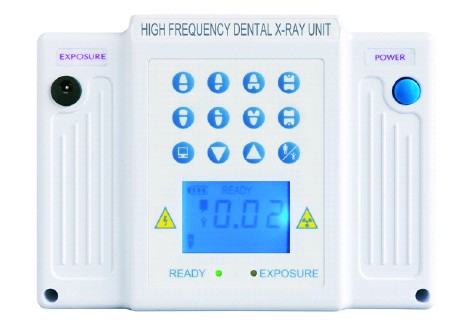

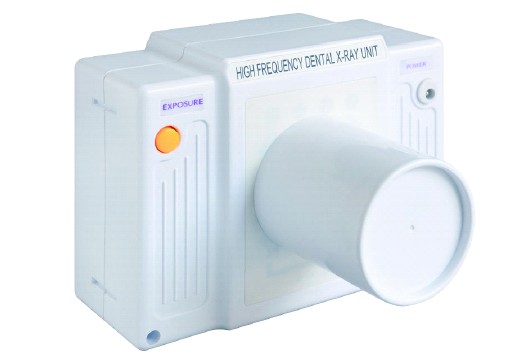

This portable high frequency dental X-ray unit is small size, light weight, excellent

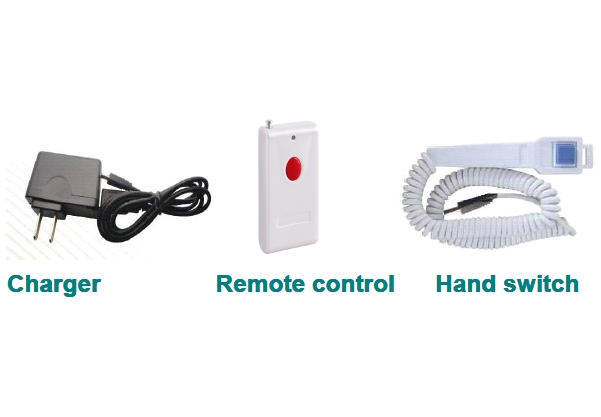

image quality and nearly no radiation , It can be control by hand switch or remote and
fixed on the pole of dental chair. apply international power supply.

tube voltage: 60kV                       tube current: 1mA
tube focus: 0.3*0.3                      exposure time: 0.02～2S
frequency: 30kHz t                      distance from skin to cone: 130mm
battery: DC14.8V 6400mA         rated power: 60VA
Charger output: DC16.8V          input : AC100V-240V±10%
weight: 2.5kg                                size:138*165*185mm
