Features:

1.This portable dental X-ray unit is high frequency machine.

2.The body is small, light weight and nearly no radiation.

3.It has excellent image quality, portable storage, save more space.

4.It uses high frequency and DC international power supply.

5.All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.

6.There are also manual buttons installed on the surface of shell, as well as batteries and charges.

7.This unit mainly suitable for oral pre-treatment for learning internal organizational structure, root depth and so on, is indispensable in daily life clinic equipment, especially for dental implant surgery.

8. It also can connect with sensor, is great convenience.
Specifications:

Tube  Voltage）: 60kV
Tube  Current: 1mA
Exposure  Time: 0.02～2S
Tube  Focus: 0.3*0.3mm
Frequency:  30kHz
Battery: DC14.8V  6400mA
Rated   Power: 60VA
Charger  Input: AC100V-240V±10%
Charger  Output：DC16.8V
Weight:2.2kg
Size:138*165*185mm
The distance from skin to cone: 130mm

Details:

Structure:

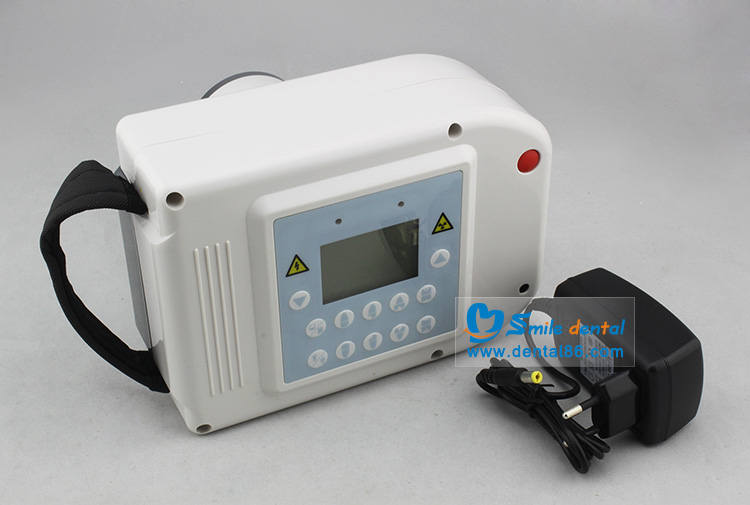

Control Panel:

Setting exposure time:

Exposure time reference:

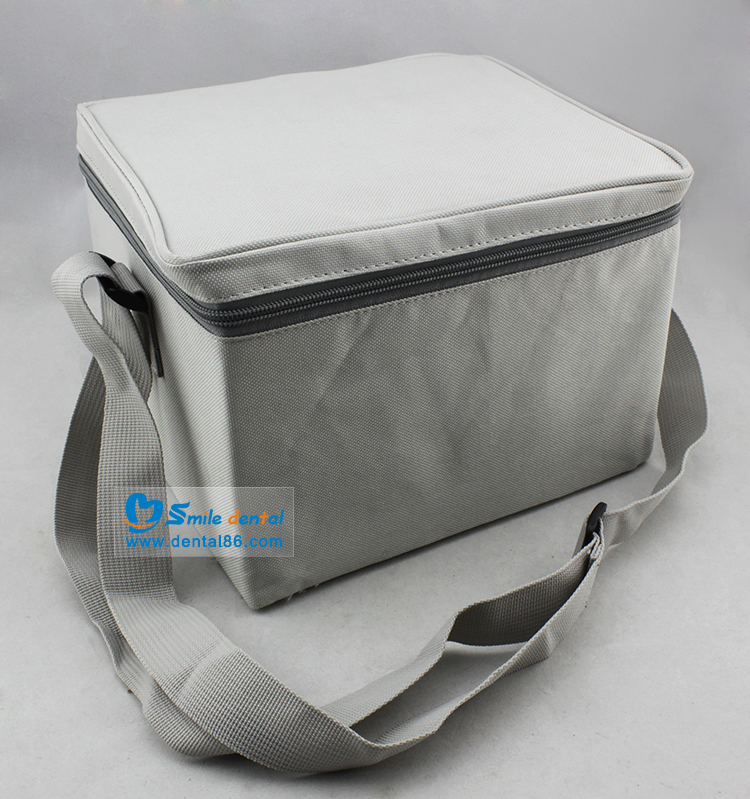

Package:

OPTIONS:

Ware House:

Vacuum pumping room                                                             Radiation room

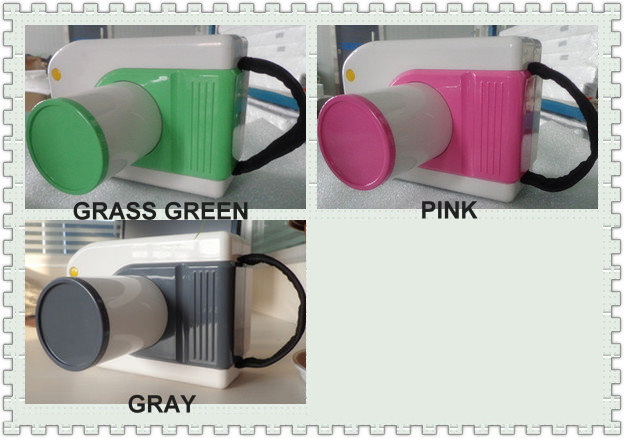

AD-60P color
