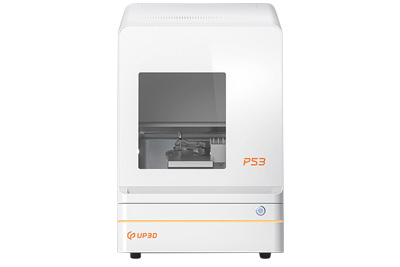

- UP53
Dental Milling Machine

UP53

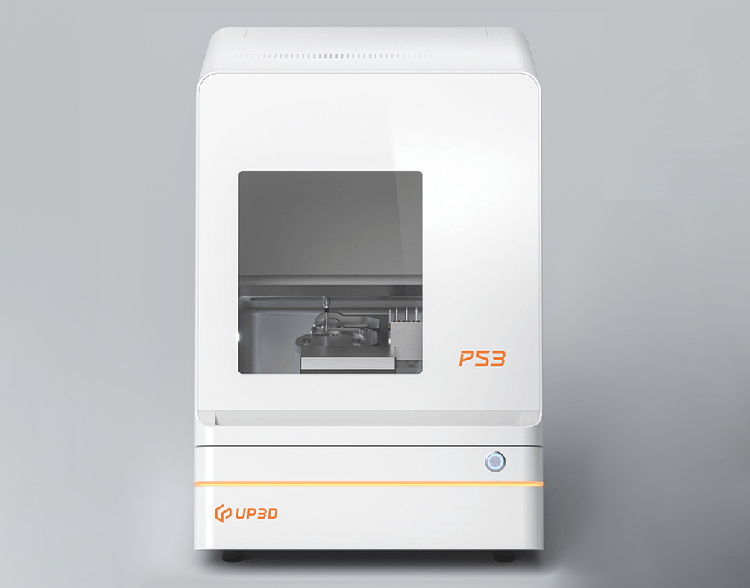

UP53 Dental Milling Machine

Smart dental 5-axis milling machine

UP53 Dental Milling Machine



UP53 Dental Milling Machine

UP53 Dental Milling Machine

UP53 Dental Milling Machine

Full CAD/CAM hardware and software are developed by UP3D
All software and hardware are independently developed by UP3D with core technology, intelligent control system and a perfect combination of integration.

 Intelligent initialization
The first milling machine with fully automatic calibration and intelligent initialization in China.

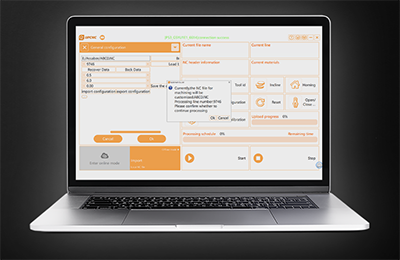

 RESUME
Avoiding repeated work, increasing 80% of your working efficiency.

UP53 Dental Milling Machine

UP53 Dental Milling Machine

UP53 Dental Milling Machine
Simple installation
DIY installation,only 10 mins.		 Remote connection
One platform controls full process machines, and enables to real-time monitoring the production status of multiple machines.		 LED light progress bar
Machine will display the processing progress. Reduce personnel inspection time.





Help the mass production
Can control multiples dental milling machines simultaneously
UP53 Dental Milling Machine

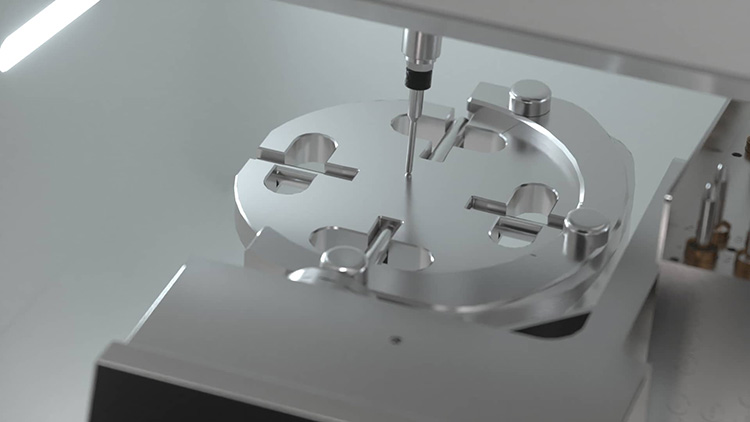

Automatic calibration
The most convenient and smart control system among the dental milling machines
UP53 Dental Milling Machine

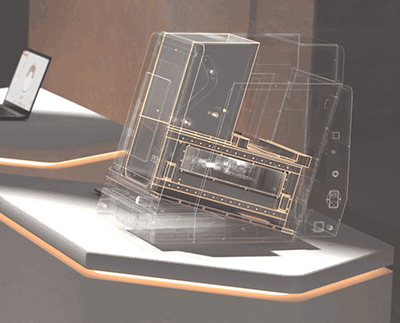

UP53 Dental Milling Machine One-piece casting framework
Portable, precise and great durability

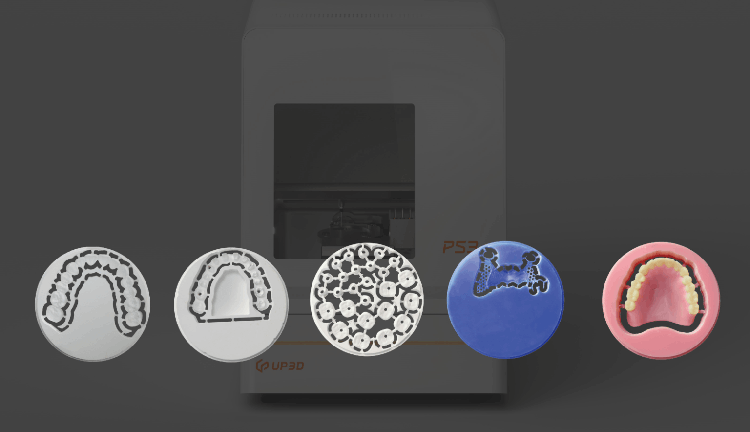

Wide application
Support multiple restoration cases
UP53 Dental Milling Machine

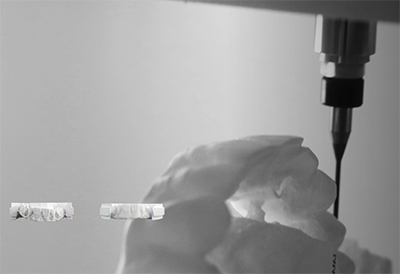

Ultra-thin veneer
The P53 processing algorithm is greatly upgraded.

which can stably cut the thinnest 0.15mm ultra-thin veneer.

 UP53 Dental Milling Machine
UP53 Dental Milling Machine Supports the 90° vertical milling
The 90° vertical milling method can make the design
of the front teeth more aesthetic.
Leading the intelligent era of dental laboratories
Resume，Automatically continue milling from the last interrupted step,
avoiding repeated work and improving work efficiency by 80%.		 UP53 Dental Milling Machine

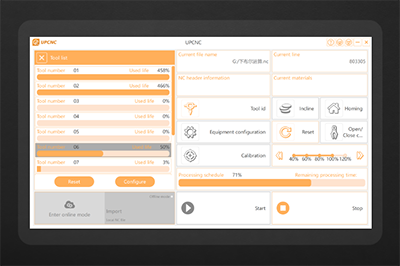

UP53 Dental Milling Machine Tools lifetime display
P53 is able to realize automatic calculation of tools lifetime reasonable
planning of tools life cycle,and reduce the risk of zirconia
breakage and milling failure with UPCAM.
UP53 Dental Milling Machine

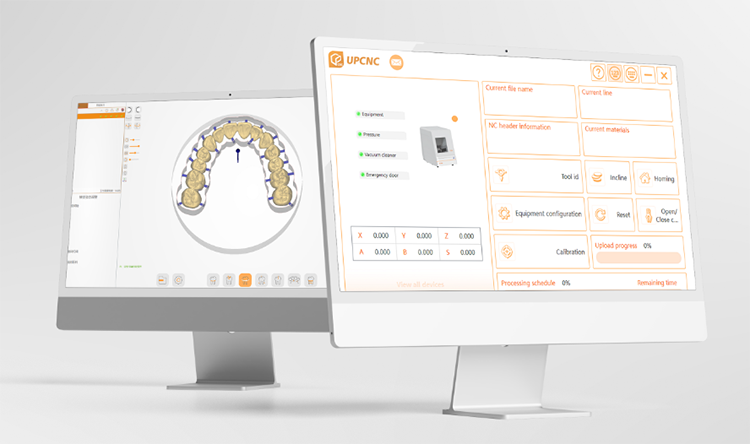

UPCNC software
One interface for multiple mills, easy to operate and one-click milling.		 UPCAM NESTING
Compatible with up3d smart milling machine P4, P5.



PRODUCT PARAMETERS
Model:P53

Dimension:443.5×718×628.5 （ m m ）

Weight:87Kg

Input voltage:AC 185~235V 、 50~60Hz

Max power:0.8KW

Spindle power:0.52KW（max）

Axis:5-axis simultaneous motion

Milling range:X/Y/Z :170/215/105mm  A:±30°  B : 360°

Milling mode:Dry milling

Max rotate speed:30,000rpm

Max feed rate:3000mm/min

Tool library:11

Tools changing:Automatic （ Air pressure >0.5MPa ）

Spindle cooling:Air compression （ Air pressure 0.25~0.35MPa ）

Milling materials:Zirconia, Wax, PMMA, PEEK and soft materials

Milling time:Coping:Zirconia-10min Wax- 4.5min
                    Crown:Zirconia-13min Wax-5.5min

Tools diameter:2+1+0.6 （ Φ 4 ）
