- XL013
Intraoral Scanner

XL013

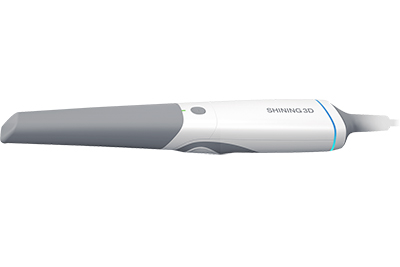

XL013 Intraoral Scanner

SHINNING 3D Aoralscan 3

Aoralscan 3

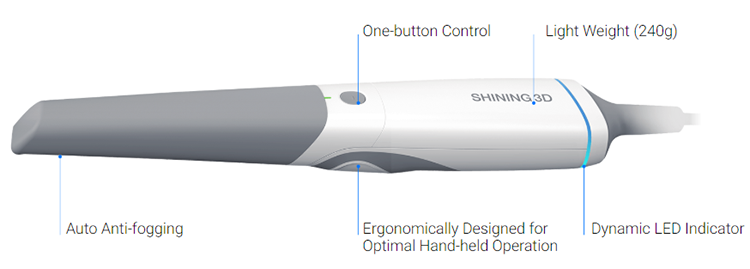

· Brand New Design

· Fast Speed

· High Accuracy

· Powerful AI Process

· Intuitive Communication

/XL013 Dental Aoralscan 3

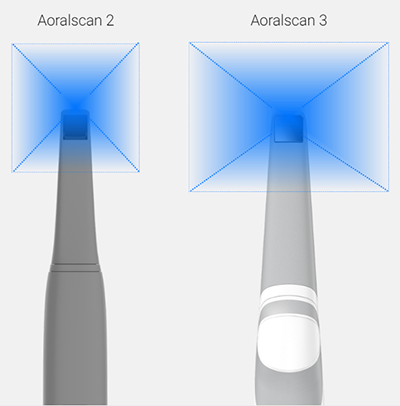

/XL013 Dental Aoralscan 3 58 %
Greater Scan Field Of View Than Aoralscan 2
16×12 mm
FOV (Standard Tip)
up to 22 mm
Deep Scan Depth
Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans.
XL013 Dental Aoralscan 3

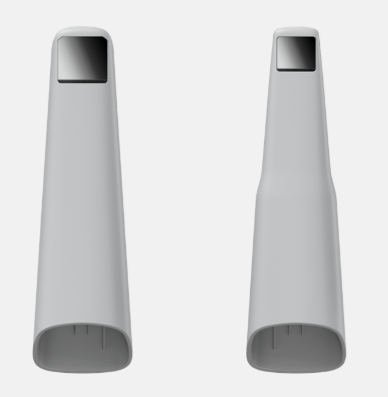

XL013 Dental Aoralscan3 2 Tip Sizes
Accommodates adults and children Anti-fogging
up to 100 times
Autoclavable

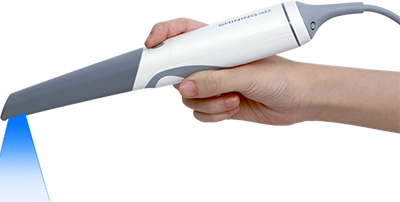

Slimmer and 15% longer autoclavable scanner tips offer patients with more comfortable clinical experience.

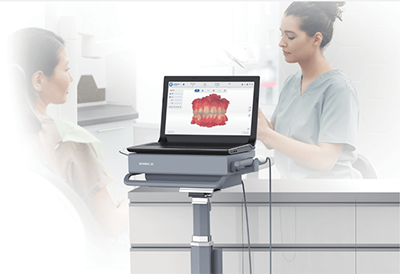

Cart Option
The dedicated cart solution was designed to professionally round off the Aoralscan experience in a broad array of working scenarios.
XL013 Dental Aoralscan 3
XL013 Dental Aoralscan 3

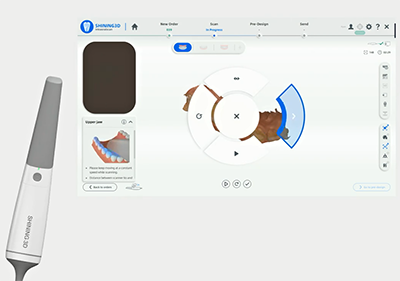

Motion Sensing
Less Contact, Much Safer
Dentists can scan with minimal contact with the computer, ensuring a safe and efficient scan experience.
XL013 Dental Aoralscan 3

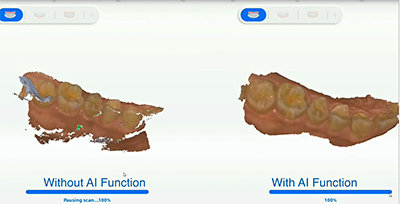

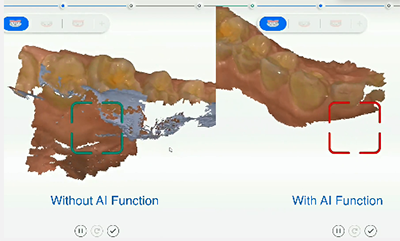

XL013 Dental Aoralscan 3 AI Scan
Speed Up The Scan
Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.
30%
More Accurate
Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.
XL013 Dental Aoralscan 3
XL013 Dental Aoralscan 3 25s
30% Faster
Single arch in 25s
Full arch in 1 min

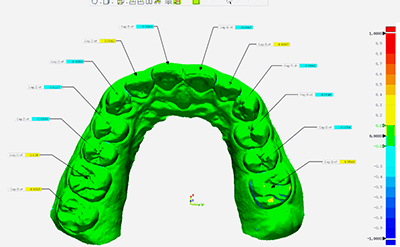

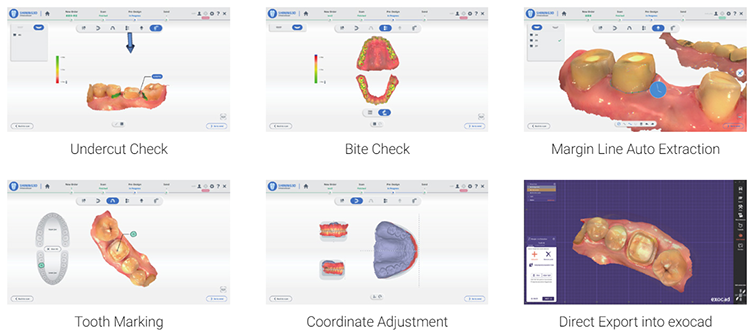

Clinical Toolkit
The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic.

It facilitates effective communication with dental labs to deliver quality dental work with high efficiency.

XL013 Dental Aoralscan 3

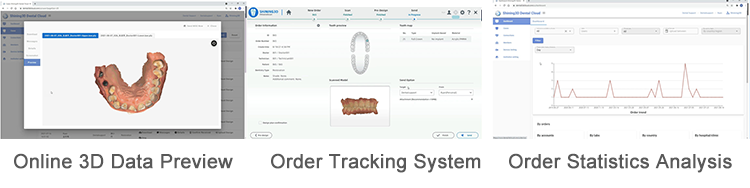

Cloud Platform
SHINING 3D’s cloud data platform enables data transmission, making it convenient for data transfer and communication between clinics and dental labs.

XL013 Dental Aoralscan 3
XL013 Dental Aoralscan 3

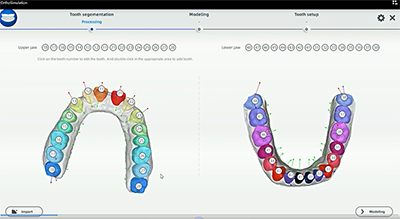

Ortho
Simulation
Preview To Be Decisive
Patients can preview images of their straightened-up results in real time.
* Coming Soon
XL013 Dental Aoralscan 3

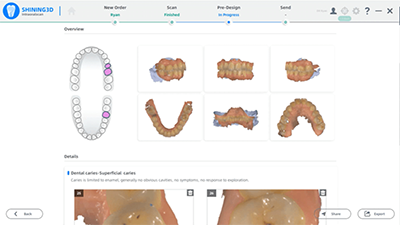

XL013 Dental Aoralscan 3 Oral Health
Report
More Informed, More Engaged
Health report includes information such as existing dental caries, missing teeth, dental calculus, pigment, etc. Patients have a better understanding of their oral health.
* Coming Soon

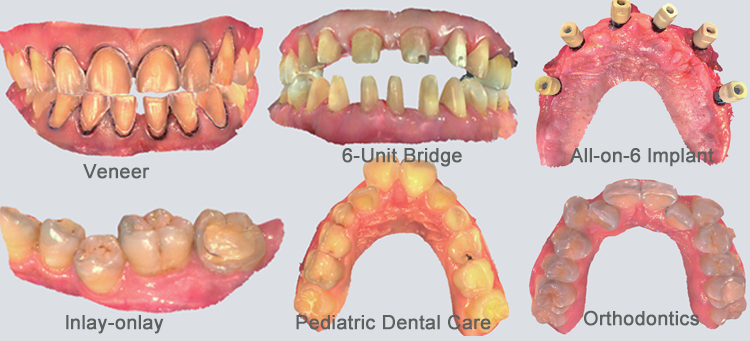

Application
The Aoralscan 3 intraoral scanner can be applied for clinical indications range spans general restorations, implants and orthodontics. Whether through same-day chairside restorations or clinic-dental lab integrated treatments, it always provides a state-of-the-art user experience.

XL013 Dental Aoralscan 3

Technical Specifications
Scan Field                             Standard scanner tip: 16 mm × 12 mm × 22 mm
                                           Mini scanner tip: 12 mm × 9 mm × 22 mm
Scan Principle                       Non-contact scanner with structured light
Dimension (L × W × H)         281 mm × 33 mm × 46 mm
Weight                                 240 ± 10 g (without cables)
Output                                 STL, OBJ, PLY
Connector                            USB 3.0
Power Input                         12V DC/3 A


Recommended PC Configuration
CPU                                    Intel Core i7-8700 or higher
RAM                                   16GB or higher
Hard Disk Drive                   256 GB SSD or above
Graphic Card (GPU)             NVIDIA ® RTX 2060 6GB DDR3 or higher
Operating System                Windows 10 Professional (64-bit) or later versions of Windows operating systems
Screen Resolution                1920×1080, 60 Hz or higher
I/O Ports                             More than 2 Type-A USB 3.0 (or higher) ports
