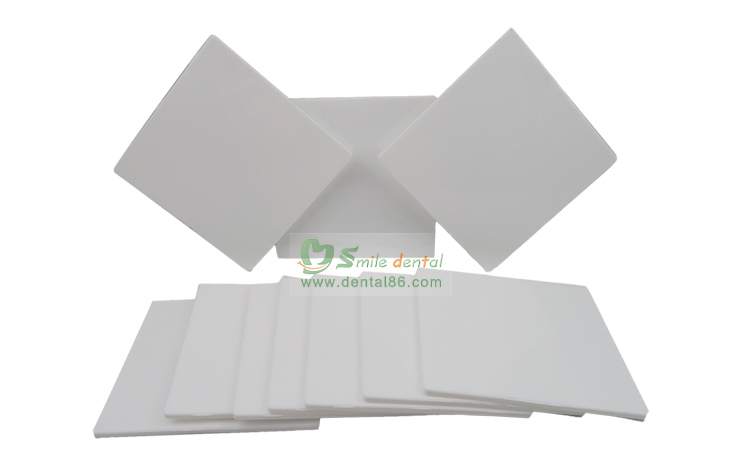

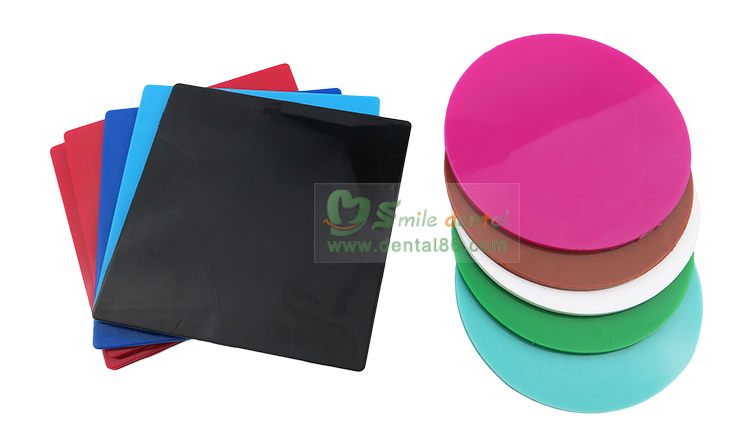

L142E5 Thermoforming Discs

581289 (Round 120mm)/581989 (Round 125mm)/581789(Square 125*125mm)

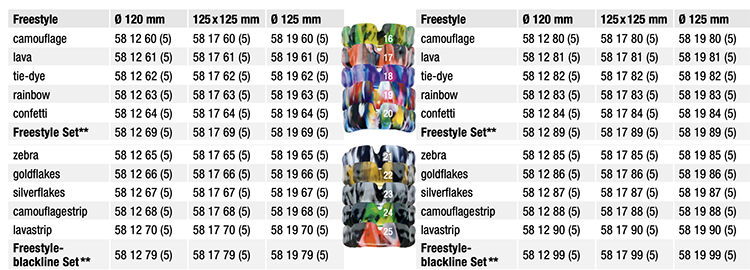

Erkoflex Freestyle Colours
Applications
Mouthguards
Quantity 5 piece/1pack

SIZE:
diameter:120mm
Thickness
4mm

Materials
Erkoflex
Colors

Assorted Freestyl

Quantity

5 piece / 1pack
Rubbery, soft-elastique thermoforming foil, ethylvinylacetate (EVA), different colours, for the fabrication of Playsafe sports mouthguard.
All Erkodent thermoforming discs are BPA free and are manufactured using medical-grade materials and precision extruding methods for the highest levels of biocompatibility and tolerance. Erkodent is an ISO-certified manufacturer and all materials are CE marked according to ECC guidelines

Item
AX-YDA Automatic Flexible Denture Injection System

Certification
CE Approved　ISO9001:2000 Approved

Purpose
This unit is for making flexible removable partial dentures.

Description
AX-YDA is update version of AX-YD Manual Denture Injection System, This machine is easy operation. The user only needs to place the cartridge of resin in the heating tube and fix the flask on the platform, the machine will press the resin into the flask when the resin is heated to the preset temperature. Through the whole working process, the resin is kept at a constant temperature in the heating tube, which greatly reduces failures caused by temperature drop, the cartridge dropping onto the floor and other mishandling in the process of removing the cartridge, a necessary step with a semi-automatic denture injection machine. Therefore the automatic denture injection machine is more user-friendly and produces more successful dentures than its semi-automatic counterpart.

Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 450W
Heating Temperature: 100~350℃
Thermocouple: K Type
Working Pressure: 0.6Mpa
Dimensions: 40cm x 70cm x 25cm (H W D)
Shipping Dimensions: 45cm x 75cm x 30cm (H W D)
Weight: 36kg

Parts Included
Machine × 1
Manual × 1
Fuse × 2
Denture Flask × 1
Cartridge (8g ) × 5
Cartridge (19g ) × 5
Silicon Oil × 1
Hexagon Wrench × 1
Copper Gasket × 2
