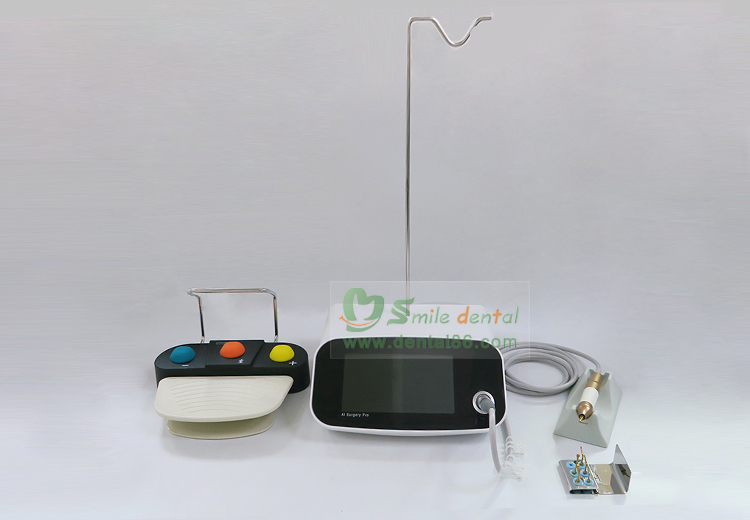

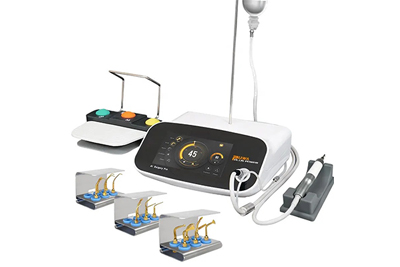

PBS01 Piezo Bone Surgery

Piezo surgery provides precision, safety, ergonomics and high quality performance for surgeons.Our piezo surgery works more efficient and powerful than many others because each tip has its corresponding working mode.
Our piezo surgery device has lots of unique features:
1. Effective positioning to achieve minimally invasive ;
2. Selective cutting with no damage on soft tissue;
3. Five different working modes.Radial amplitude ;
4. stable cutting radial amplitude is 20~200㎛, horizontal amplitude<30㎛

Piezo surgery is a new system required for modern surgery and implant surgery.Piezo surgery can greatly shorten treatment time and effectively cut on hard and deep sections. Ourpiezo surgery 's impeccable performance facilitates accurate, faster, atraumatic, and more predictable bone treatments with less invasive protocols.

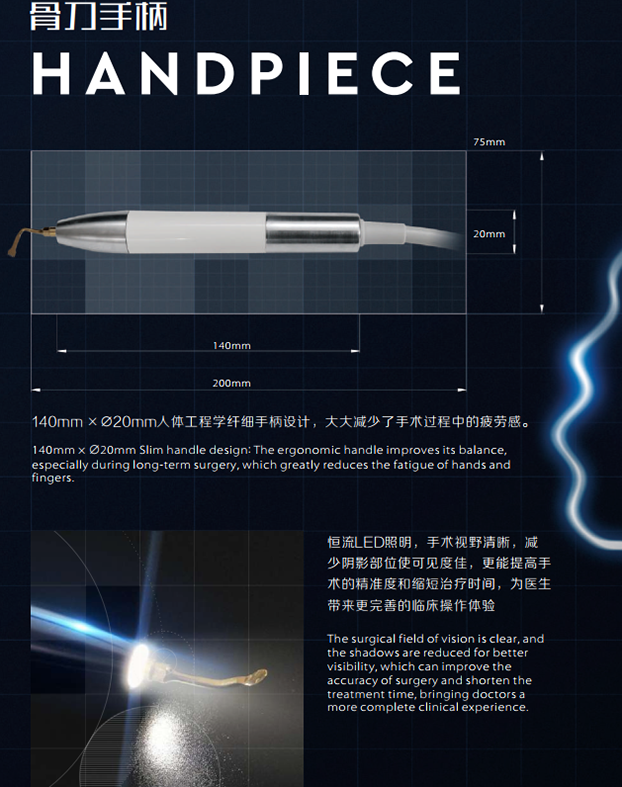

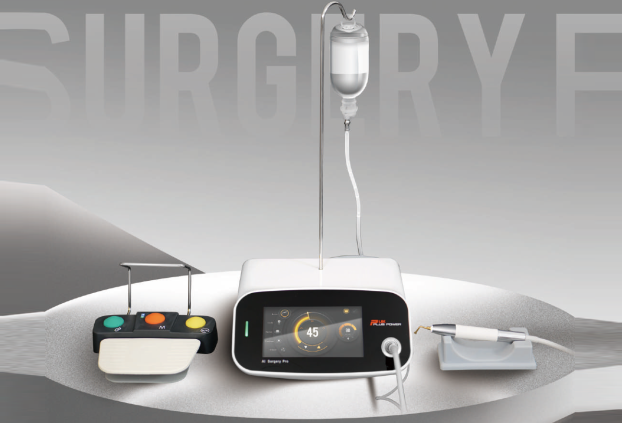

Our piezo surgery features include an exclusive 7" HD color touch screen, an intuitive user interface, and less- vibration LED handpiece,
which provides for a new level of ergonomics, and a wireless bluetooth foot switch make the aseptic operation truly realized and the hands completely freed.

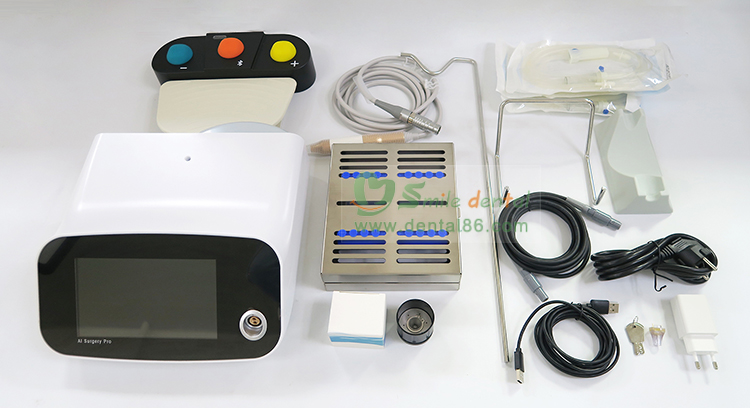

It is equipped with 1 set of surgical tips.

VRN AIR-MASTER
6 in 1
22 tips

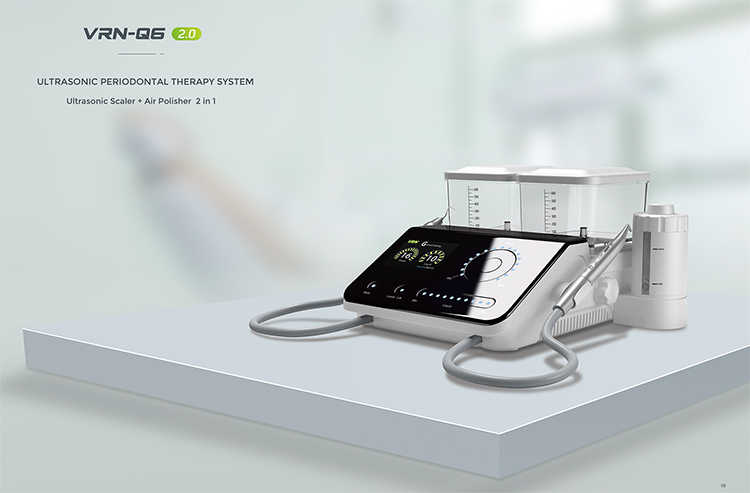

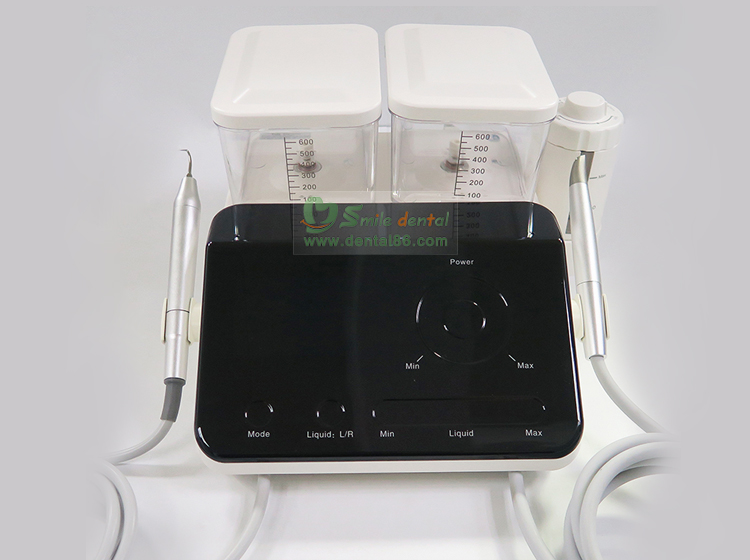

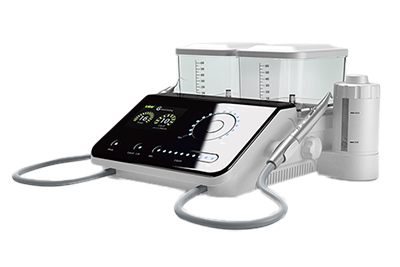

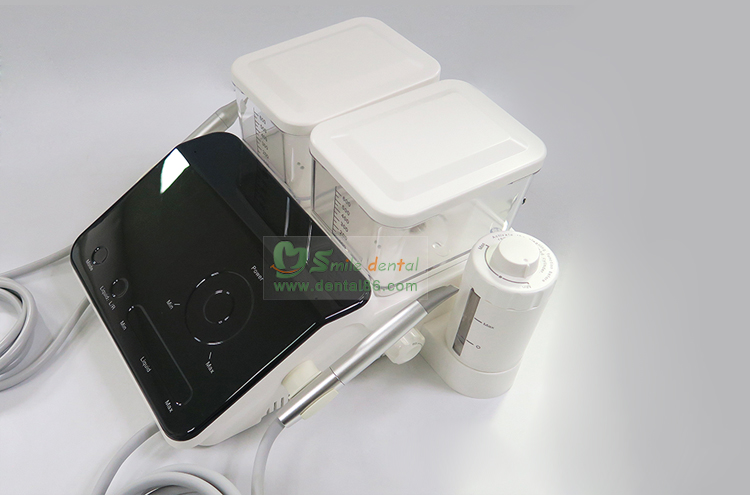

US48 Ultrasonic Periodontal Therapy System

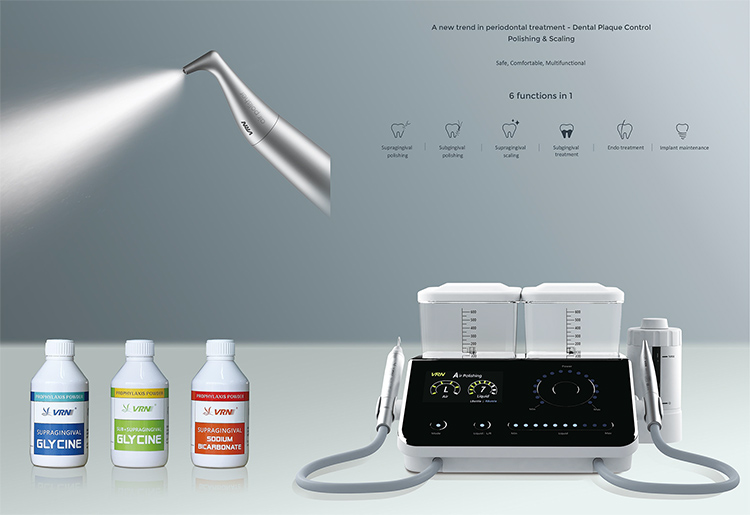

6 in 1 Dental Ultrasonic Air Polisher Scaler
Features:

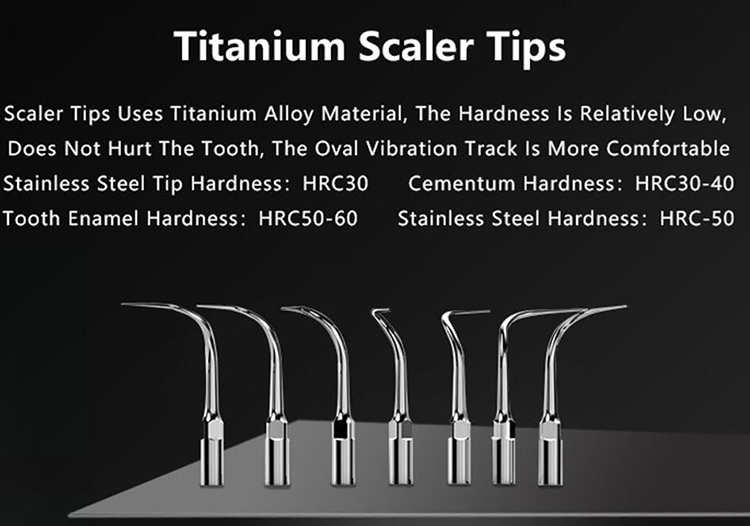

1.The scaler tip is casted from Titanium alioy to ensure circular vibration track and more concentrated amplitude, so that Perio, Scaling. Endo, Restorative treatments can be done simultaneously

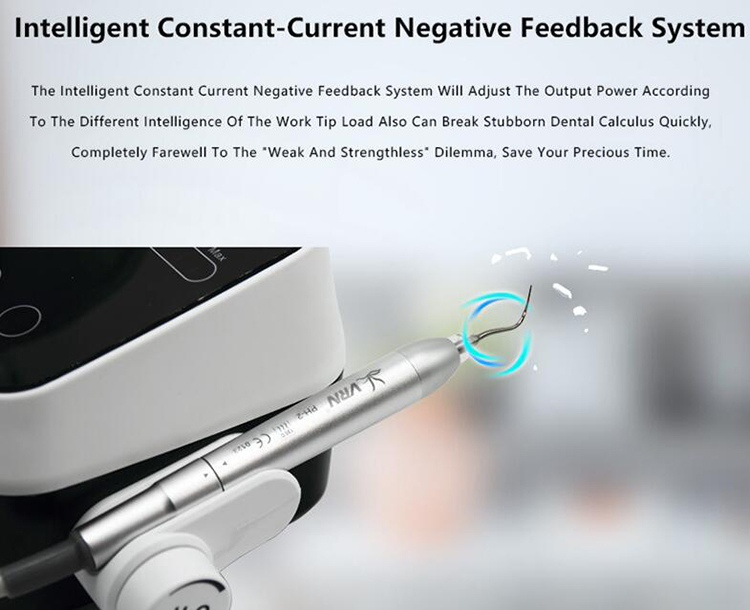

2.Smart electronics allows an extremely wide power range with 16 grades from low energy delivery in endodontics to powerful scaling
3.Two large refilable bottles,to satisfy using pure water or disinfectant
4.The hydraulic routing is made from antiseptic material. Disinfectant for the treatment, such as hydrogen peroxide, chlorhexidine, sodium hypochiorte can be filled into the automatic water supplysystem
5.Detachable handpiece can be 135℃and 0.22 MPa autoclave steriization
6.The design of electric valve, making water better controlled and operation more convenient.

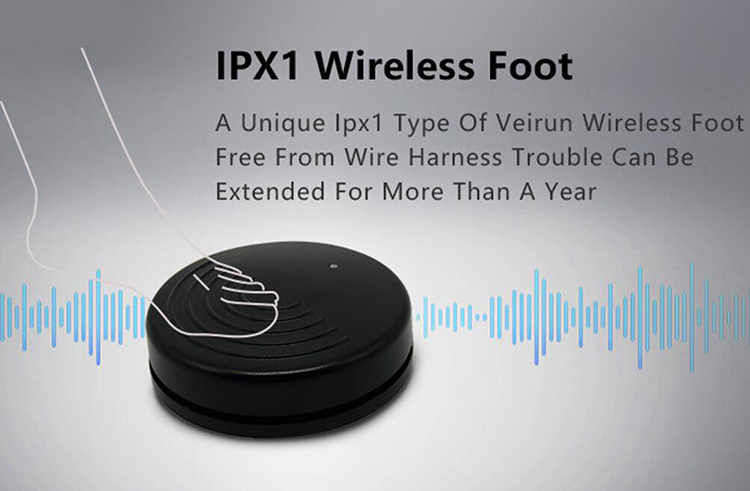

7.The evolutional wireless foot pedal remotes the main unit, and the cord foot pedal can also be selected according to user's needs

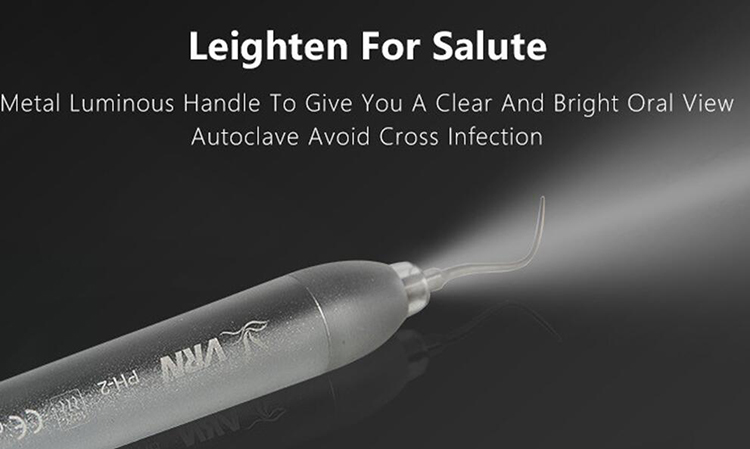

8.Soft bright LED light improves the clinical efficiency.

Technical Specification:

Specification
Input	AC100~240V, 50/60Hz
Main Unit Input	DC30V, 1.3A
Water Input pressure	0.5MPa~0.6MPa
Vibration frequency of the tip	28kHz+3kHz
Ultrasonic output power	3W~20W
Output Half-excursion	≤2N
Foot Switch Batteries	1.5V×2
Receiving Sensitivity	-114Db
Main Unit Dimensions	310×370×170mm
Packing Size	470×400×235mm
Weight of main unit	1.50kg
Gross Weight	6kg
Quality guarantee	host – 3 years, handpiece – 1 year
Scaling Tip	G1*1, G2*1, G3*1 G4*1, G5*1, E1*1, IM1*1, P1*1, P2R*1, P2L*1, P3*1, P11*2, P12L*2, P12R*2, P12*2, P13R*1, P13L*1, P15*1

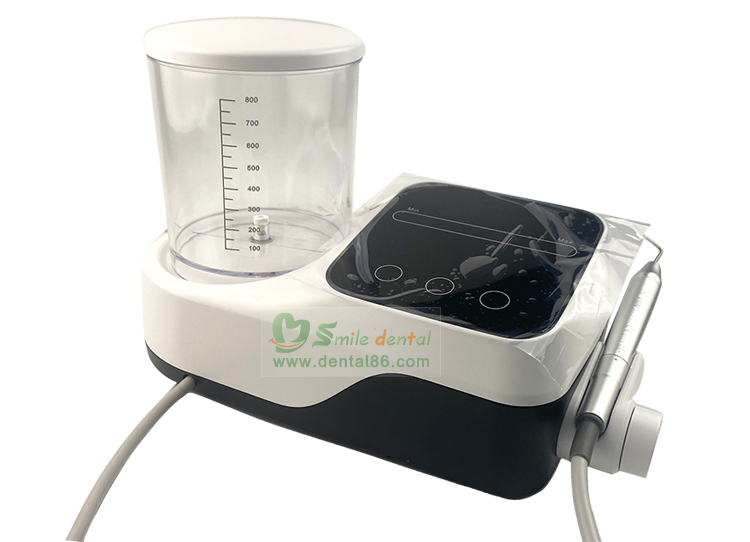

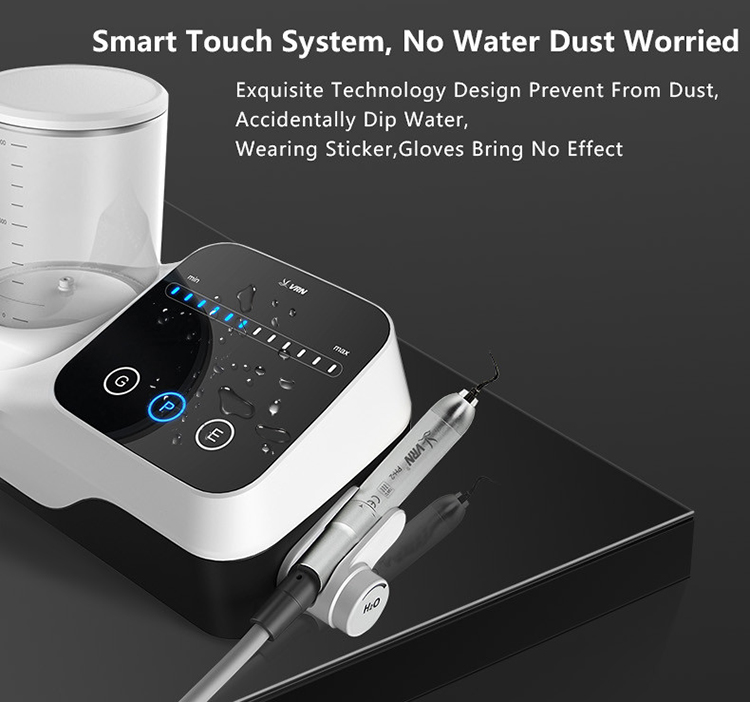

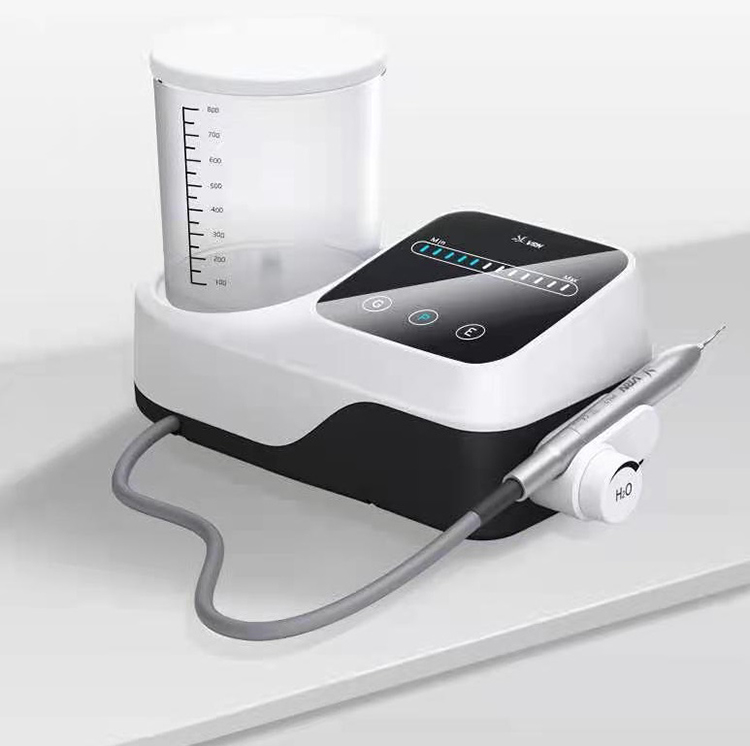

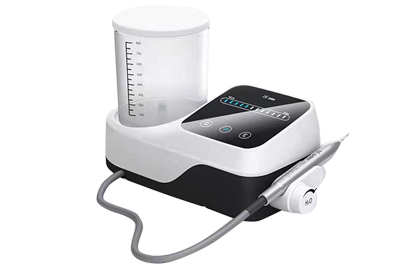

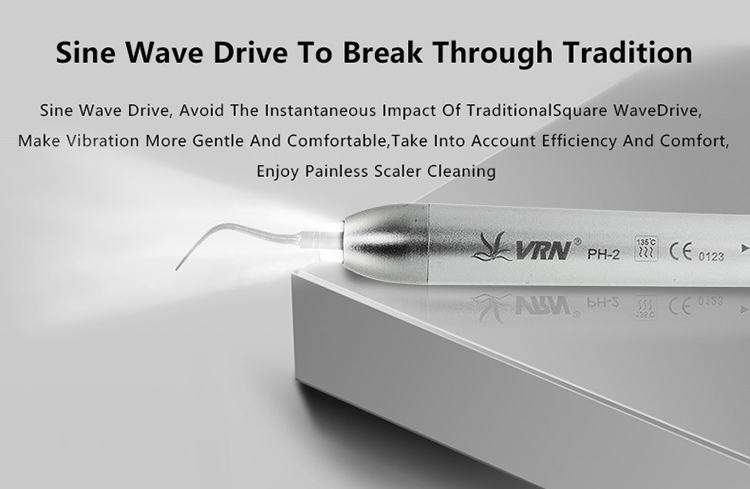

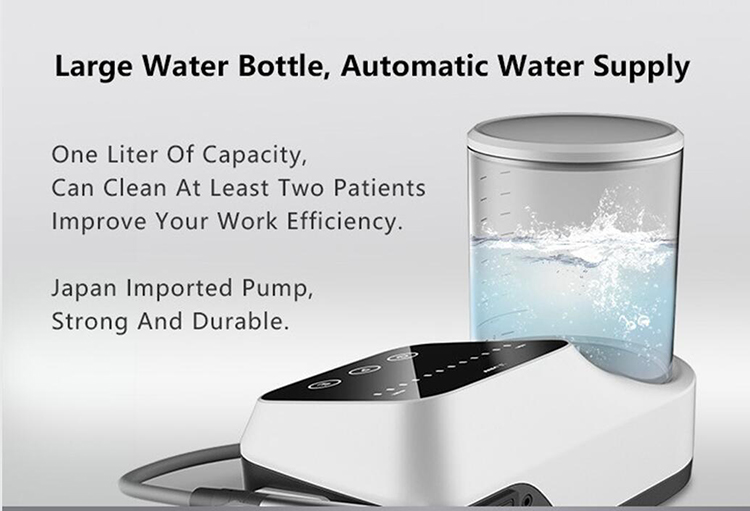

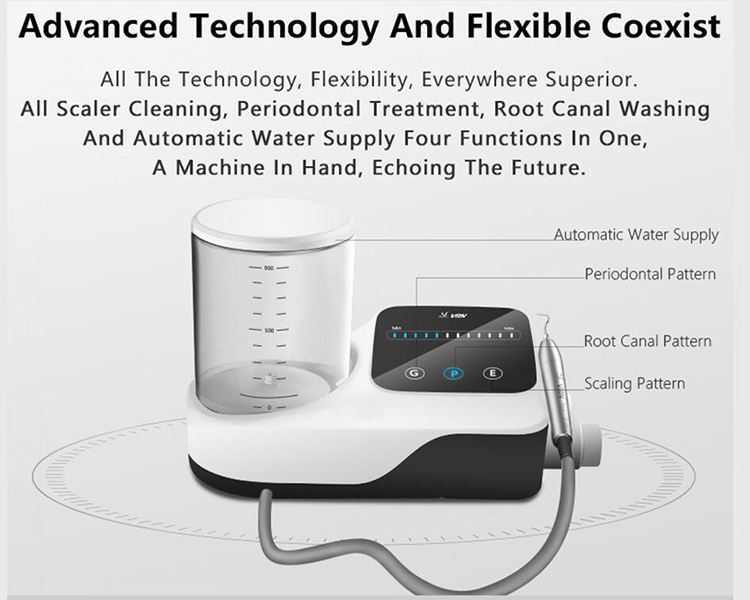

US47 Periodontal Treatment Device

AlI The Technology, Flexibility, Everywhere Superior.

All Scaler Cleaning, Periodontal Treatment, Root Canal Washing

And Automatic Water Supply Four Functions In One,

A Machine In Hand, Echoing The Future.

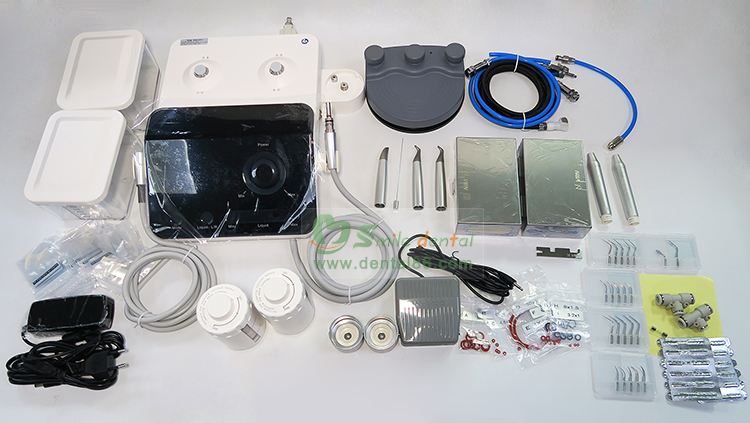

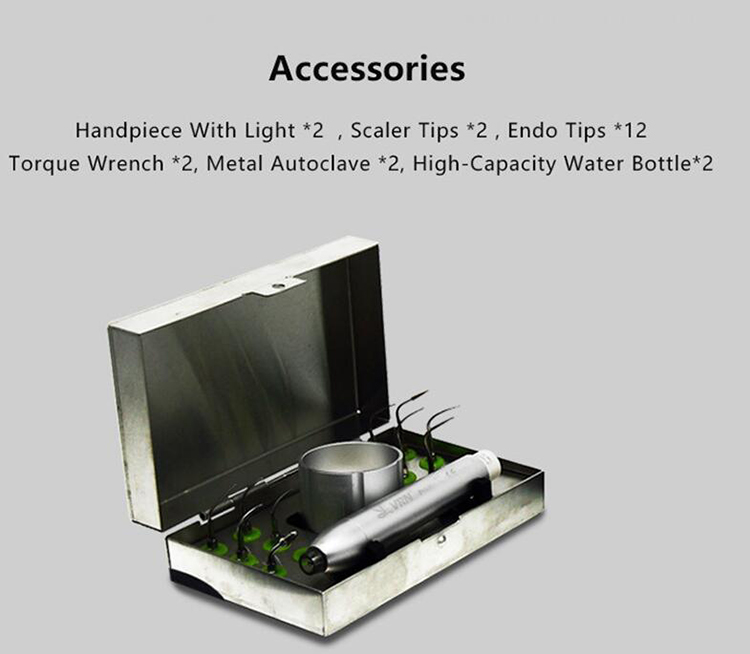

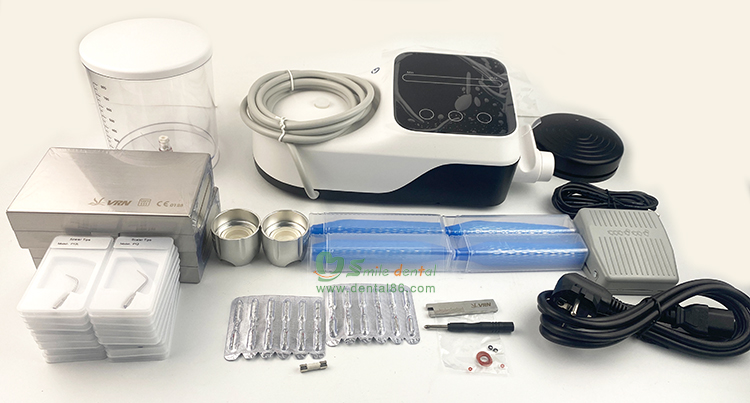

Handpiece With Light *4，16 tips, Torque Wrench *2, Metal Autoclave *2, High-Capacity Water Bottle* 2, 2 Foot switch (ONE is wirelss)
